The Hidden Ceiling: How OCR Quality Limits RAG Performance

Retrieval-Augmented Generation (RAG) has become the default way to connect Large Language Models (LLMs) with enterprise data. However, there's a critical flaw in this approach that's rarely discussed: nearly all production RAG pipelines rely on Optical Character Recognition (OCR) to process PDFs, scans, presentations, and other documents, with the silent assumption that the extracted text is "good enough" for downstream AI tasks.

Our comprehensive analysis shows that this assumption is fundamentally flawed. OCR quality creates an invisible ceiling that limits the performance of even the most advanced RAG systems. The gap between what's possible with perfect text extraction and what's achieved with current OCR technology represents one of the most significant yet overlooked challenges in enterprise AI today.

Why OCR is still critical for AI systems

Most enterprise knowledge is locked in unstructured formats like PDFs, scanned documents, invoices, presentations, images, and a plethora of other formats. Before a Large Language Model (LLM) can reason over this knowledge, it needs to be converted from its original visual or semi-structured format into plain text.

This text conversion step, typically handled by OCR engines, is crucial because it feeds two core components of a RAG system:

1. The Retrieval System: Most retrieval systems depend on extracted text as their main search input. When OCR quality is poor, it produces inaccurate or "corrupted" text representations of your documents. This results in flawed text representations, making it difficult or impossible for the retrieval system to locate the relevant documents when a user asks a question. If the text doesn't accurately reflect the content, the search fails before it even begins.
2. The Generation Model (LLM): LLMs generate answers based only on the context they are given. If the retrieved document snippets contain OCR errors (missing words, jumbled tables, incorrect numbers), the LLM receives flawed information. This directly leads to incomplete, nonsensical, or factually incorrect answers, even if the retrieval system managed to find the correct document pages.

In short, errors introduced by OCR don't just stay in the text; they cascade through the entire RAG pipeline, impacting both the ability to find information and the ability to generate accurate answers from it.

Putting OCR to the Test: Our Benchmark Setup

To quantify this "OCR ceiling" and understand its real-world impact, we needed a robust way to measure performance across diverse and challenging documents. We conducted extensive testing using the OHR (OCR hinders RAG) Benchmark v2.

This benchmark is specifically designed to evaluate how OCR performance affects RAG tasks and includes:

• Diverse & Challenging Documents: 8,500+ PDF pages across seven enterprise domains (Textbooks, Law, Finance, Newspapers, Manuals, Academic Papers, Administrative) featuring complex layouts, tables, formulas, charts, diagrams, and non-standard reading orders that are known to challenge OCR systems.
• Targeted Questions: 8,498 question-answer pairs specifically designed to test retrieval and understanding of information related to these OCR challenges. Each answer is grounded in specific evidence pages within the documents.
• Verified Ground Truth: Human-verified, perfect text extraction and curated answers provide a reliable "gold standard" for comparison.

Against this benchmark, we evaluated a range of OCR and retrieval approaches:

This comprehensive setup allowed us to isolate the impact of different OCR qualities and compare text-based approaches directly against our multimodal retrieval system.

Testing Retrieval: Setup and Results

First, we focused on retrieval - the task of finding the right information within the vast document set. If your RAG system can't surface the correct documents, the LLM has no chance of answering the user's query accurately.

Retrieval Setup

We transformed the OHR benchmark's question-answer pairs into a retrieval task: the question became the query, and the associated evidence pages were the target documents to retrieve.

For the text-based OCR methods, we used BM25, a standard and robust keyword-based ranking algorithm commonly used in search engines. (We tested embedding-based retrieval and rerankers too, but found they often degraded performance on this benchmark compared to the strong BM25 baseline, likely due to OCR noise corrupting the embeddings. You can find more details here.)

For the Mixedbread Vector Store, we leveraged our multimodal embedding model (mxbai-omni-v0.1), which directly processes screenshots of the document pages. This approach is inherently resilient to OCR errors because it "sees" the page layout, structure, and visual elements alongside the text.

We measured retrieval performance using two standard metrics:

Retrieval Results: The OCR Ceiling is Real

Our retrieval benchmarks revealed stark differences between traditional OCR-dependent methods and our multimodal approach.

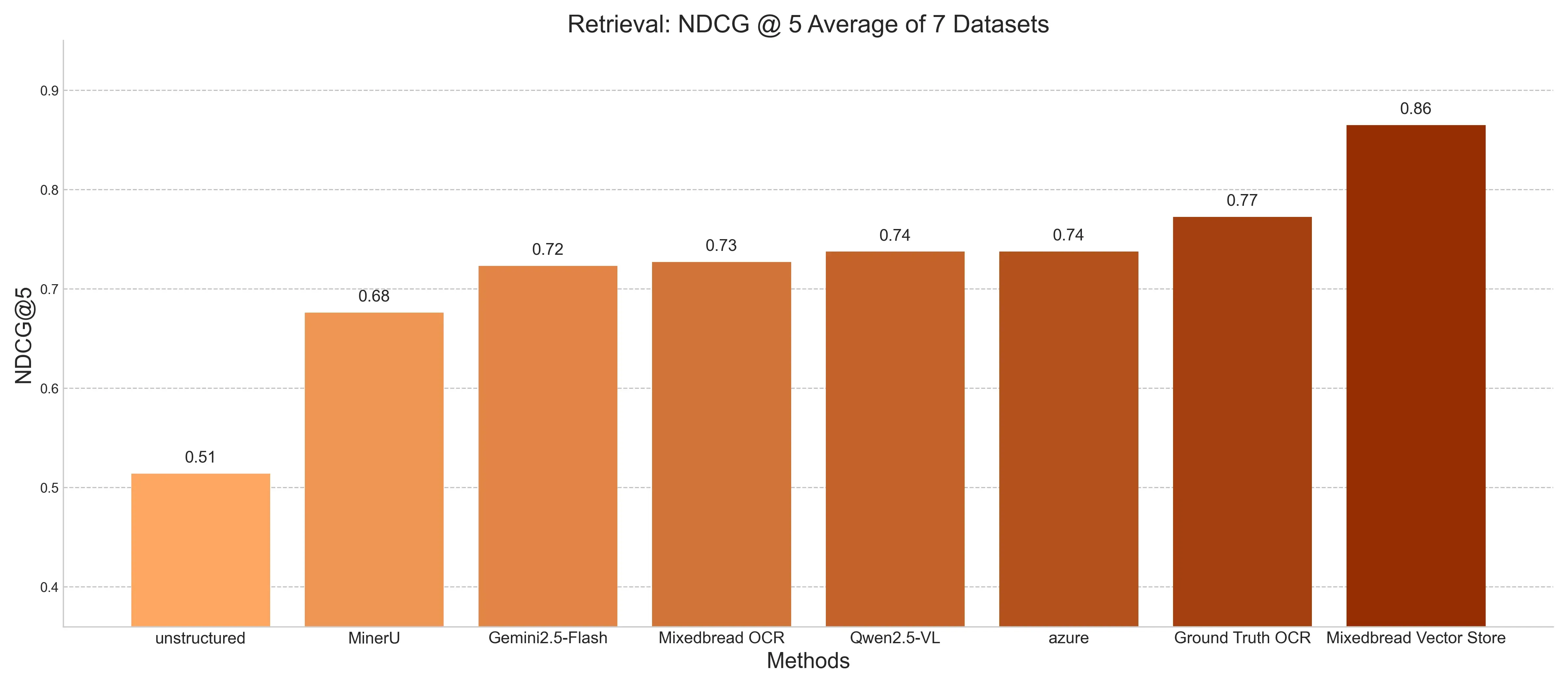

NDCG@5 Performance (Average across all 7 document domains)

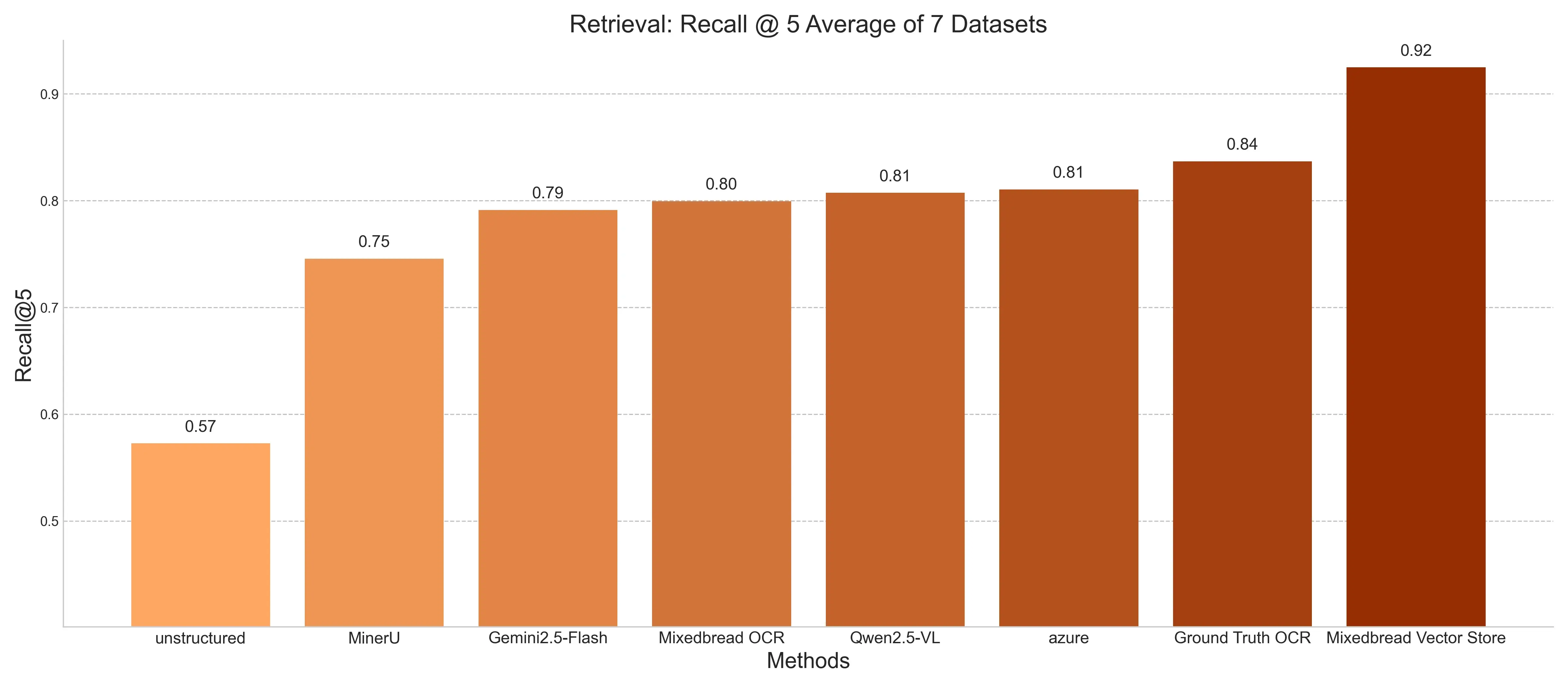

Recall@5 Performance (Average across all 7 document domains)

These results reveal several critical insights:

1. OCR Creates a Performance Ceiling: Every single OCR solution tested underperformed compared to the Ground Truth benchmark using perfect text. The best OCR methods plateaued around 0.74 average NDCG@5, a ~4.5% absolute gap below the Ground Truth's 0.773. This confirms that OCR errors inherently limit retrieval effectiveness.
2. Complexity Magnifies OCR Issues: The performance gap widens for documents with complex layouts (finance, textbooks, news). These domains often feature tables, formulas, multi-column text, etc., that challenge OCR.
3. Multimodal Excels by Seeing the Whole Picture: Mixedbread Vector Store consistently outperformed all other methods, including the perfect text Ground Truth benchmark. Its average NDCG@5 of 0.865 is nearly 12% higher than Ground Truth text because it understands the visual context (layout, tables, charts) directly from the image, providing richer relevance cues.

The Recall@5 increases from 0.84 using Ground Truth text to 0.92 using the Mixedbread Vector Store. Let's put this in perspective:

• With Ground Truth (perfect OCR): Recall@5 = 84% → 84 out of every 100 truly relevant documents are retrieved in the top 5.
• With Mixedbread Vector Store: Recall@5 = 92% → 92 out of every 100 truly relevant documents make it into the top 5.

This 8% absolute improvement (or ~9.5% relative improvement) in recall represents a substantial gain in retrieval performance. These retrieval benchmarks quantify the hidden ceiling imposed by relying solely on OCR. While better OCR helps, the results strongly indicate that a multimodal approach represents a fundamental leap forward.

Testing Generation: Setup and Results

Okay, so multimodal retrieval finds better documents, overcoming the OCR ceiling. But does this improved retrieval actually translate into more accurate final answers from the LLM? To find out, we tested the end-to-end RAG performance.

Generation Setup

We set up three scenarios, feeding the top 5 retrieved documents from each into the same powerful LLM (gemini-2.5-flash-preview-04-17) for answer generation:

1. Perfect OCR & Perfect Retrieval (Ground Truth): Using the human-verified text for generation and the true evidence pages as an input ('Perfect Retrieval'). This represents the theoretical maximum performance achievable with the current models if they would have the correct context and perfect extraction.
2. Perfect OCR & Retrieval: Using the human-verified text for both BM25 retrieval and for the top 5 passages and generation context. This is the quality you would get if your OCR would be perfect with the current technology.
3. Mixedbread OCR (Text-Based RAG): Using text extracted by our high-quality OCR engine for both BM25 retrieval for the top 5 passages and generation context. This mirrors a standard, good-quality text-only RAG pipeline.
4. Mixedbread Vector Store (Multimodal Retrieval): Using our multimodal model to retrieve the top 5 page images, but then using the corresponding clean text extracted by Mixedbread OCR as the generation context. This isolates the benefit of visual retrieval while keeping the generation input modality (text) consistent.

To measure success, we focused on the Correct Answers rate. We used GPT-4.1 as an impartial judge, providing it with the original question, the ground truth answer, the ground truth evidence text, and the answer generated by gemini-2.5-flash-preview-04-17 in each scenario. The final score is simply the number of correct answers divided by the total number of questions.

Generation Results: Better Retrieval = Better Answers

The generation tests confirmed our hypothesis: superior retrieval leads directly to more accurate answers.

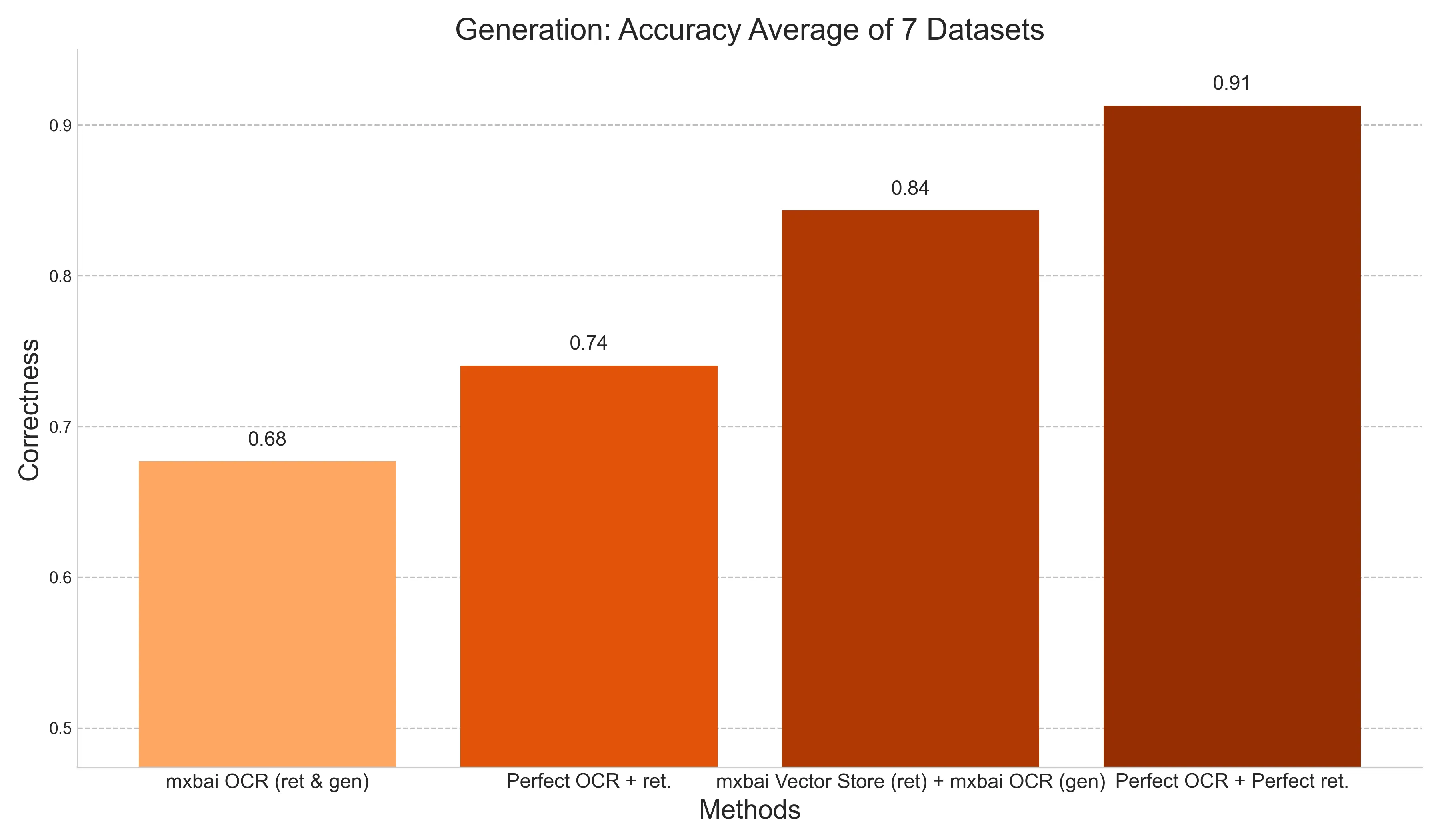

Correct Answers Rate

Key takeaways from the generation tests:

1. OCR Flaws Amplify During Generation: Relying on standard OCR for both retrieval and generation resulted in a 25.8% decrease in correct answers compared to using perfect text (0.677 vs 0.913). Flawed input context significantly degrades the LLM's ability to generate accurate answers.
2. Better Retrieval Dramatically Boosts Correct Answers: Simply swapping standard OCR-based retrieval for Mixedbread Vector Store's multimodal retrieval – while still using the same potentially imperfect OCR text for generation – caused the average correct answer rate to jump massively from 0.677 to 0.843. This single change recovered 70% of the accuracy lost due to the limitations of a standard OCR-based pipeline.
3. Finding the Right Pages is Paramount: The quality of retrieval is often more critical than perfect text in the generation context. Getting the correct documents into the LLM's view, even with minor OCR imperfections, is far more beneficial than feeding the LLM slightly cleaner text from the wrong documents.

These generation benchmarks confirm that state-of-the-art multimodal retrieval can mitigate a large portion of the negative downstream effects of OCR errors.

Direct Image Generation: Is Vision-Only RAG Ready?

Given the success of using visual information for retrieval, a natural question arises: can we skip OCR entirely, even for the generation step? What if we feed the images of the retrieved pages directly to a powerful multimodal LLM like Gemini 2.5 Flash and ask it to generate the answer by "reading" the images? We tested this "Direct Image Understanding" approach:

Correct Answers Rate (Average across 3 document domains)

The results were surprising:

• Direct Image Input Lags Significantly: Feeding page images directly to the LLM for generation yielded the lowest average correct answers (0.627).
• Visual Retrieval vs. Visual Generation: Multimodal models excel at using visual cues for retrieval, but current models still struggle with fine-grained extraction directly from pixels across multiple documents during generation, compared to working with pre-processed text.
• Quality OCR Text Still Best for Generation (For Now): Providing clean, explicit text to the LLM currently leads to the most accurate answers.

In essence: While fully visual RAG is an exciting possibility, today's reality is that combining the strengths of multimodal retrieval with high-quality OCR text for generation provides the best overall performance.

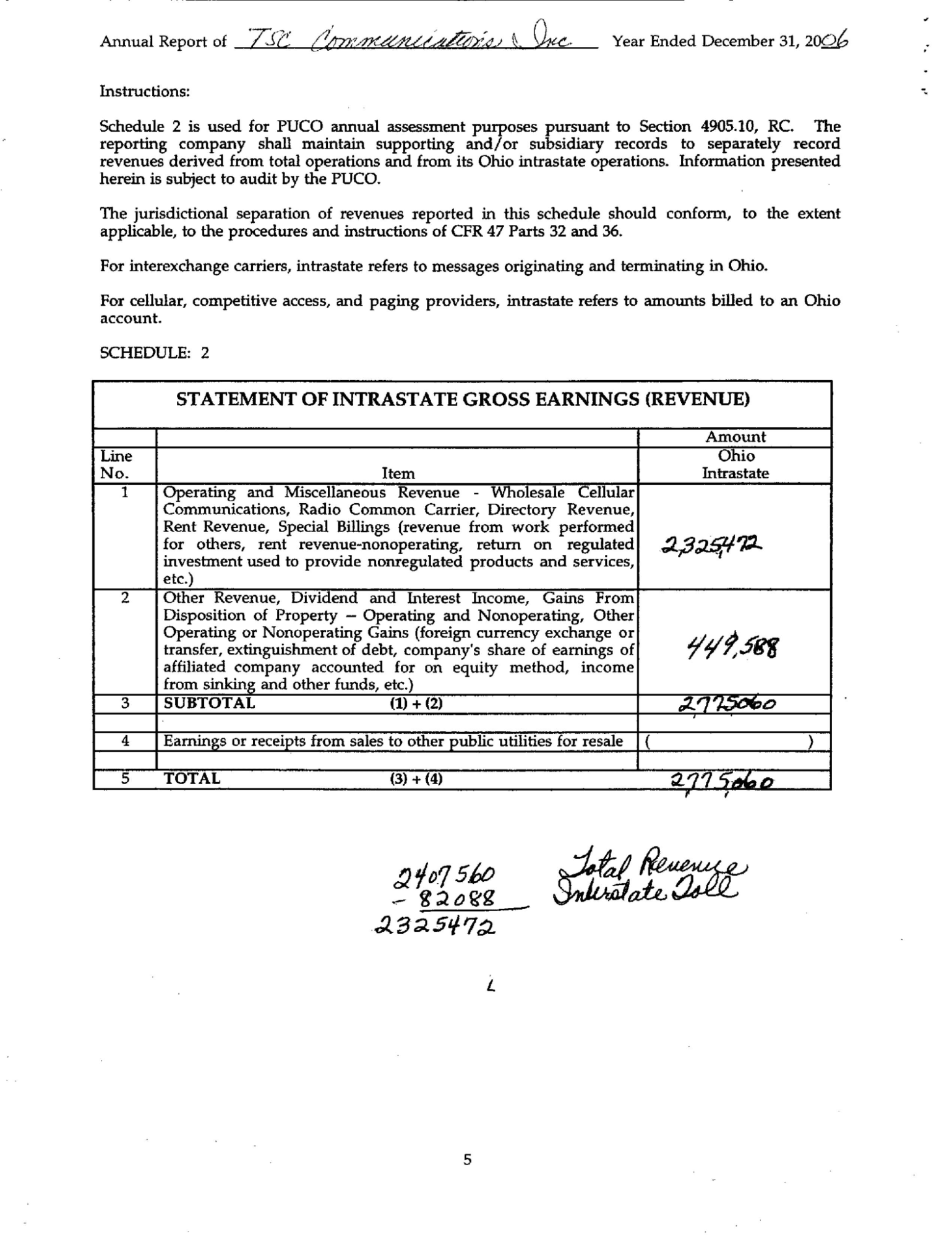

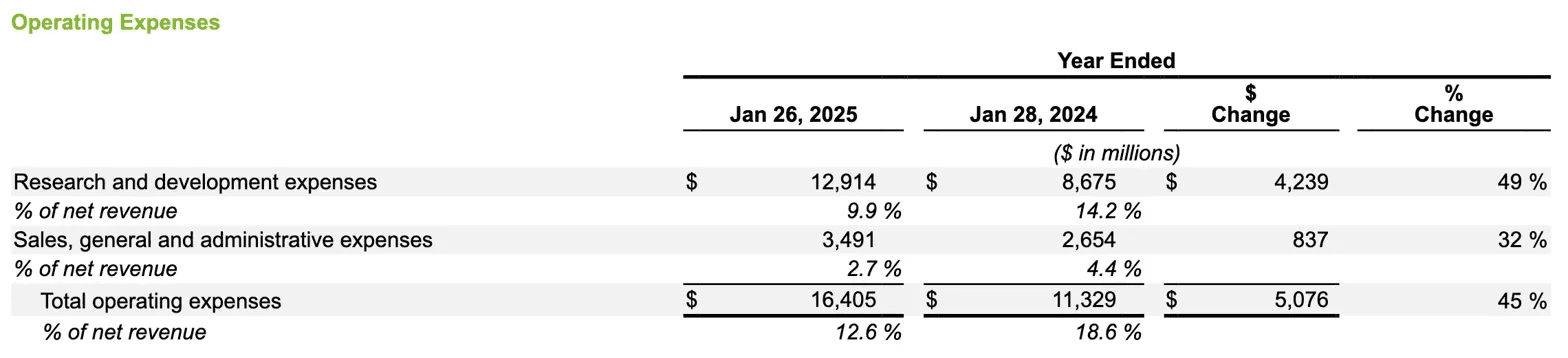

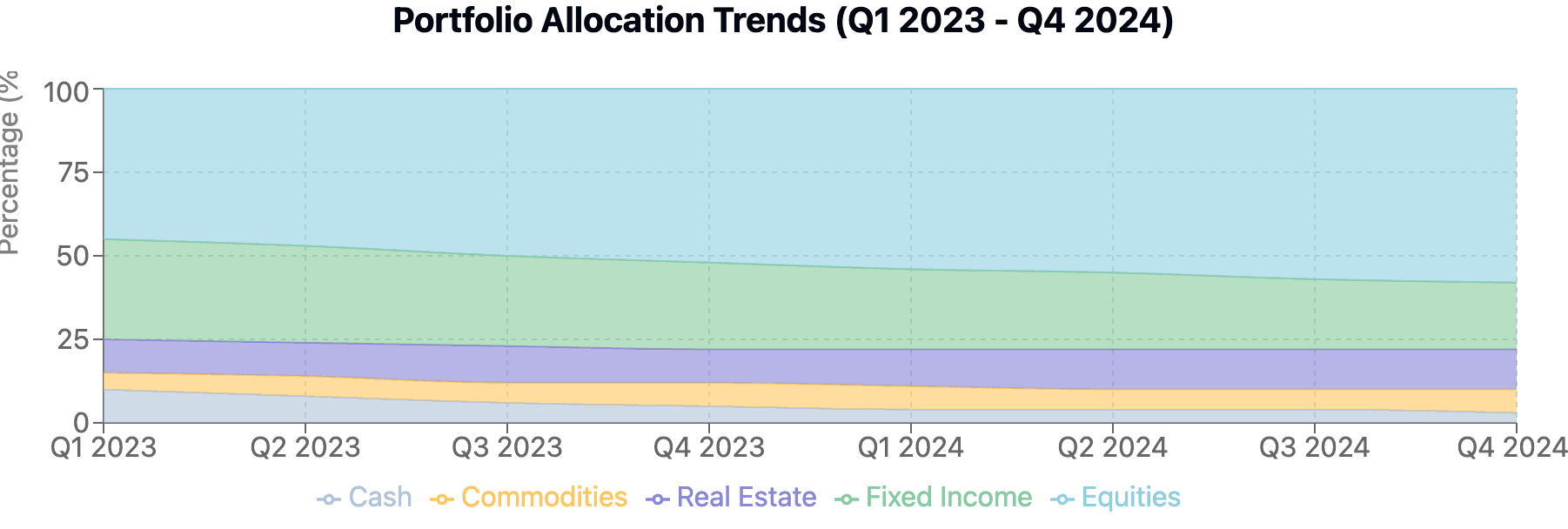

Illustrative Examples: Where Standard OCR Falters

To make the impact of OCR limitations more concrete, let's examine a few specific scenarios from our benchmark data. These examples highlight common situations where traditional OCR-based systems can struggle and demonstrate how a multimodal approach to retrieval can lead to more accurate document interpretation.

The Mixedbread Vector Store Approach: Functionality and Implications

The Vector Store is designed to address the observed limitations of OCR-dependent RAG systems. Its architecture is centered on leveraging multimodal information for retrieval through our mxbai-omni-v0.1 model. This model directly analyzes and creates embeddings from the visual content of page screenshots, videos, and other multimodal data, enabling an understanding of layout, structure, tables, and charts in their original context. As shown in our benchmarks, this improved retrieval accuracy (NDCG@5) by approximately 12% compared to even perfect text extraction.

Concurrently with visual analysis, documents are processed by our OCR engine. The extracted text is stored and made available alongside the visual embeddings. This dual-modality approach offers distinct advantages for RAG pipelines:

• Better Retrieval: Visual analysis helps locate the most relevant documents, particularly in cases where text-only search might falter due to OCR errors or the nature of the content (e.g., charts, complex tables).
• Optimized Generation Context: High-quality OCRed text remains available, which is beneficial for current Large Language Models that primarily operate on textual input for generation.
• Integrated Document Processing: The system handles both visual embedding and text extraction automatically, so users don't have to worry about anything during data ingestion and preparation for RAG.
• Adaptability for Future LLMs: By storing both visual representations and text, systems are better prepared for future advancements in multimodal LLMs that might directly leverage richer image data for generation.

This integrated system design aims to improve overall RAG performance, as evidenced by the benchmarked retrieval gains and the recovery of 70% of generation accuracy typically diminished by OCR issues in conventional pipelines, all within a unified framework.

Conclusion: Navigating the OCR Bottleneck with Multimodal Retrieval

The benchmark results presented indicate that Optical Character Recognition quality can be a significant limiting factor for RAG system performance, particularly with complex, real-world documents. Errors and omissions in text extraction can restrict both the ability to accurately retrieve relevant information and the quality of the final answers generated by an LLM.

An approach incorporating multimodal analysis for retrieval, such as that employed by the Mixedbread Vector Store, addresses some of these limitations. By directly interpreting visual information from page images, this method improved retrieval accuracy by approximately 12% (NDCG@5) compared to even perfect text extraction in our tests. This enhancement in retrieval subsequently contributed to recovering 70% of the generation accuracy that was otherwise diminished by OCR errors in more conventional pipelines.

While current Large Language Models generally perform optimally with high-quality text for the generation phase, the strong retrieval performance of multimodal systems highlights a path towards more robust document understanding. An integrated system that provides both visually-driven retrieval and high-quality OCR text offers a practical solution for current application needs. Furthermore, it establishes a foundation for adapting to future advancements in LLMs that may more directly leverage rich image data for generation tasks.

The findings suggest that for applications involving diverse and structurally complex documents, incorporating multimodal understanding into the retrieval process is a key consideration for improving the accuracy and reliability of RAG systems.
